CVD Diamond coating




SiC sealing rings                                                            Deep cavity wire drawing dies                                                           3 inch wafer for acoustic devices


Due to the extraordinary high concentration of atomic hydrogen resulted from the very high temperatures generated by the arc discharge, diamond thin films by DC Arc Plasma Jet usually have a higher thermal conductivity, and a better crystal quality (as shown by Raman) , even at relatively high growth rate. Apparently this is beneficial for applications in the field of cutting tools and friction and wear. Particularly, high growth rate easily achievable by DC Arc Plasma Jet may suppress (delay) the outward diffusion of cobalt in the cemented carbide, which will promote the adhesion of the diamond film coatings on the surface of the cemented carbide tools. Besides, higher crystal quality and higher thermal conductivity are also beneficial for acoustic applications.


Applications

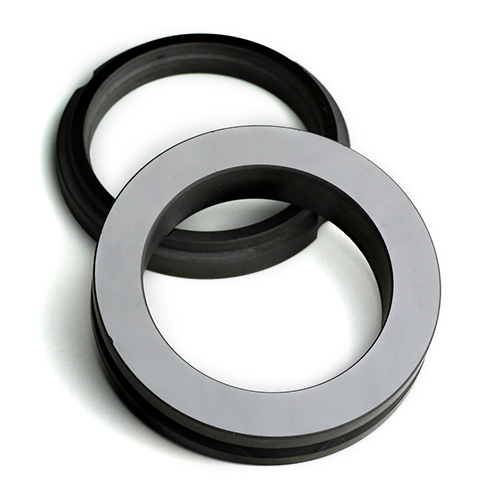

Diamond thin film coated SiC for sealing applications in a harsh environment.

Diamond thin film coated deep-cavity cemented carbide wire drawing dies (with circular cross section cavities).

Diamond thin film coated deep-cavity cemented carbide wire drawing dies (with irregular shaped cavities)

Diamond thin film coated silicon wafer for acoustic applications (high frequency (GHz) surface acoustic wave (SAW) devices).

Diamond thin film coatings for the application field of friction and wear.


Advantages

Low friction coefficient

Excellent wear resistance

Excellent thermal stability

Good uniformity

Good adhesion

Specifications
Vickers hardness:                 8000-10000mm2

Young's Modulus:               1000-1100GPa

Friction Coefficient:             0.05-0.1

Thickness:                         <50μm
Thickness after polishing:    <30 μm
