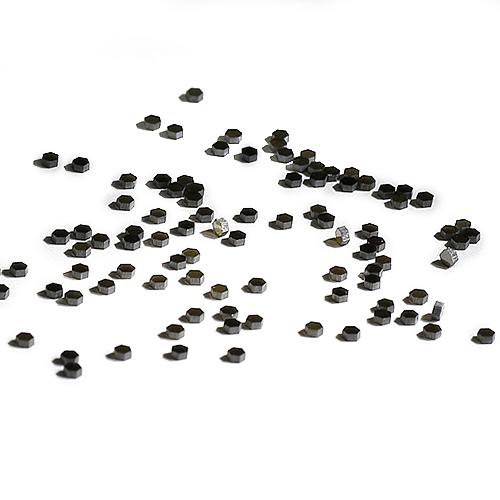

CVD Diamond wire drawing die blanks

The wire drawing die blanks produced by our company are very pure polycrystalline diamond. No other materials were added and they are of high hardness and good abrasion resistance. They also have the advantages of the poly-and the mono-crystallite, and they can be widely used in wire drawing of stainless steel, tungsten, molybdenum, copper, aluminum and many other alloy materials.The wire drawing die blanks produced by our company are the ideal substitute for the natural and the poly-crystallite .

Normal size

Product Number

Diameter of Inner Circle(mm)

Thickness(mm)

CVDD2010

2.0

1.0

CVDD2512

2.5

1.2

CVDD3015

3.0

1.5

CVDD4020

4.0

2.0

Note: The shapes mentioned above are hexangular.
Special specifications are available on request.
Parameters of properties

Vickers hardness

7000-10000kg/mm2

Density

3.51g/cm3

Young's modulus

1000-1100GPa

Thermal conductivity

1000W/mK

Chemical stability

insoluble in alkali and acid
